Spot Welding Best Practices for Sheet Metal: Parameters, Spacing & Testing
Spot welding is one of the most widely used joining methods in sheet metal fabrication, prized for its speed, strength, and suitability for high-volume production. Achieving reliable, high-quality welds, however, depends on a disciplined approach to preparation, equipment care, and process control. Clean material surfaces, properly maintained electrodes, and correctly selected welding parameters such as pressure, current, and weld time are essential for producing consistent results.
Just as important is maintaining a strong focus on safety by using appropriate PPE and keeping flammable materials away from the work area. By removing contaminants, dressing electrode tips regularly, choosing settings that match material thickness, and conducting destructive tests when needed (such as when adhesives are present), engineers and technicians can ensure robust weld performance. This article outlines the key best practices that support safe, efficient, and repeatable spot welding for sheet metal. However, these best practices should be treated as general guidelines, as the actual best practices will vary based on each manufacturer’s capabilities.
Spot Welding Parameters

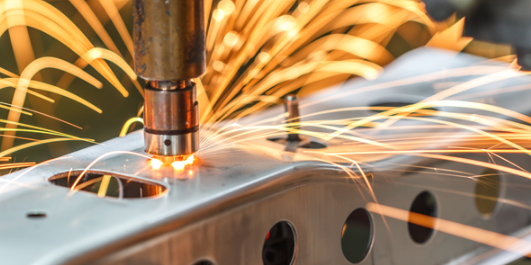

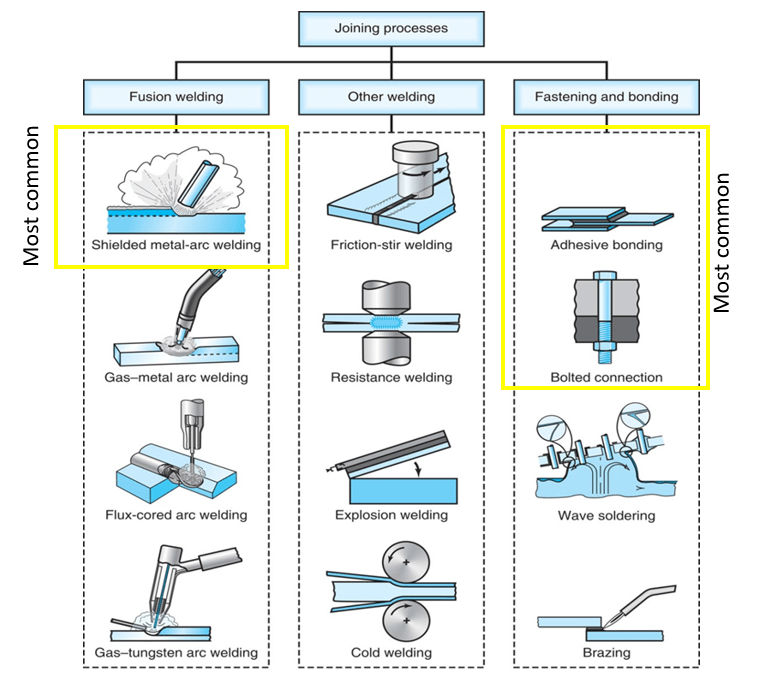

Spot welding is a resistance welding process: two copper alloy electrodes clamp the sheet metal stack together and pass a high current through the joint. The resistance at the interface between the sheets generates localized heat, which melts a small “nugget” of material that fuses the parts together as the electrodes hold pressure. The heat generated follows the resistance heating formula:
Q = I²Rt
where Q is the heat generated (joules), I is the welding current (amps), R is the resistance at the weld interface, and t is the weld time. Because current is squared, it has the largest effect on heat generation, making current the most sensitive parameter to control precisely.
The three core spot welding parameters that must be set for each application are:
- Current — the amount of electrical current passed through the weld stack; higher current generates more heat and a larger nugget.
- Electrode force (pressure) — the clamping force applied by the electrodes, which controls contact resistance and prevents molten metal expulsion.
- Weld time — how long the current flows, typically measured in cycles (1 cycle ≈ 1/60 second on 60 Hz power). Thicker material stacks generally require longer weld times.
Starting parameter values should always come from equipment manufacturer guidelines or be validated on scrap material, since electrode condition, surface cleanliness, and material coating all shift the optimal settings.
Spot Welding Preferred Materials
When spot welding one material to another, the preferred welding materials are those that have compatible standard chemical compositions. Of the common materials, these are the possible combinations:
- Low carbon steel to Low carbon steel
- Stainless steel to Stainless steel
- Low carbon steel to Stainless steel
- Aluminum to Aluminum (that has been chemically cleaned)
Plated and pre-plated steels—except those with chromium plating—can generally be spot-welded, and while the weld strength is typically unaffected, the plating may reduce electrode life. Spot-welded assemblies can also be plated after welding without compromising joint integrity. For aluminum components, anodizing should always be performed after the spot-welding process to ensure proper surface finish and coating quality. For general sheet metal part design considerations beyond welding, see our sheet metal design guidelines.
Spot Weld Patterns for Sheet Metal
Material Thickness Combinations:
➔ Less than 70% thickness difference will conceal weld marks for aesthetic purposes (the aesthetic part is thicker).
➔ The ratio of two unequal sheet thicknesses should not exceed 5 to 1.
➔ Preferred: All attachments to the main part should be the same thickness material.
There are a number of spot arrangements that can be used for sheet-metal parts. Usually, the simplest pattern that will maintain joint integrity is preferred.
For severe operating conditions (high vibratory or fatigue loading), a double row or staggered double row may be selected. Weld spacing and pattern selection directly affect how the joint holds up under repeated cyclic loading — see our guide to fatigue analysis in engineering for how these loads are evaluated.
Other variations of spot weld arrangements are possible. They are usually dependent on part geometry, system stresses, and layers of metal to be joined.
The type of supplier welding equipment may be a factor in choosing a spot-weld pattern.

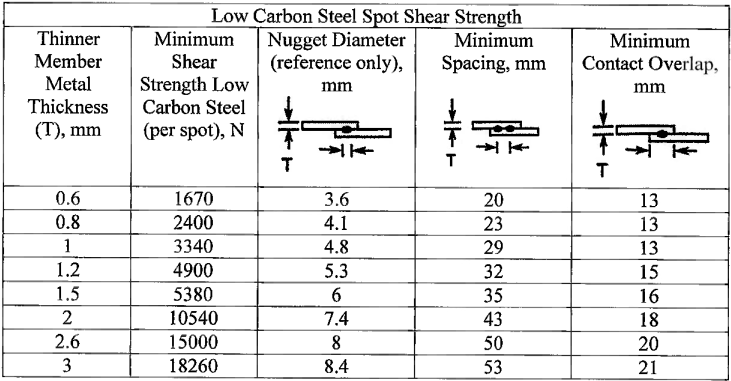

Spot Weld Shear Strength in Low Carbon Steel
For multi-row welds, the recommended spacing between individual weld points is ~ five times the weld nugget diameter. This spacing helps ensure proper heat distribution and prevents overlapping heat-affected zones that could weaken the joint. Maintaining this distance also promotes consistent weld quality and structural integrity across the entire connection. However, the actual spacing required can vary significantly depending on the material composition and the size of the weld nugget, so adjustments may be necessary to achieve optimal weld quality and structural performance.

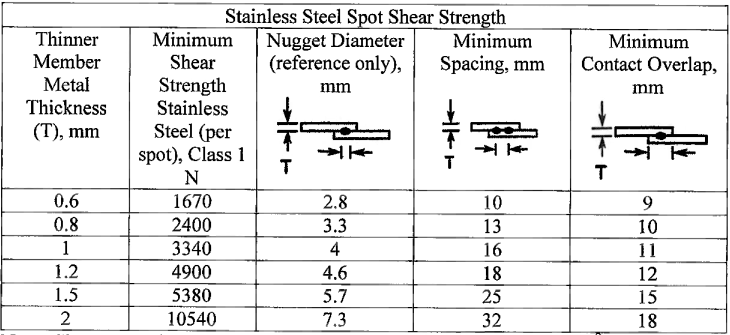

Spot Weld Shear Strength in Stainless Steel

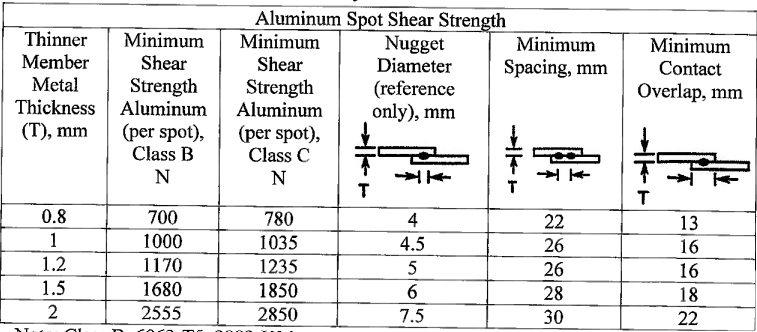

Spot Weld Shear Strength in Aluminum Alloys
Spot Weld Testing Methods
Verifying that a spot weld meets its strength and nugget-size requirements is done through a combination of destructive and non-destructive methods:
- Peel test — the welded sheets are pulled apart by hand or with a tool, and the weld nugget that remains (a round “button” pulled out of one sheet) confirms fusion occurred and lets the nugget diameter be measured directly.
- Tensile-shear test — a welded coupon is pulled apart on a tensile testing machine to measure the maximum shear load the weld can carry, which is compared against the shear strength values for the material and thickness (see the tables above).
- Cross-section (metallurgical) inspection — a weld sample is cut, mounted, polished, and etched to reveal the nugget in cross-section, allowing engineers to directly measure nugget diameter and penetration and check for internal defects such as porosity or cracking.
- Visual inspection — checking for surface indentation, discoloration, expulsion (spatter), and electrode marking, which can indicate parameters that are out of range even before destructive testing.
Destructive testing (peel and tensile-shear) is typically performed at set intervals during production and whenever process parameters, materials, or equipment change, while cross-section inspection is more commonly used during process qualification or when investigating a suspected weld defect.

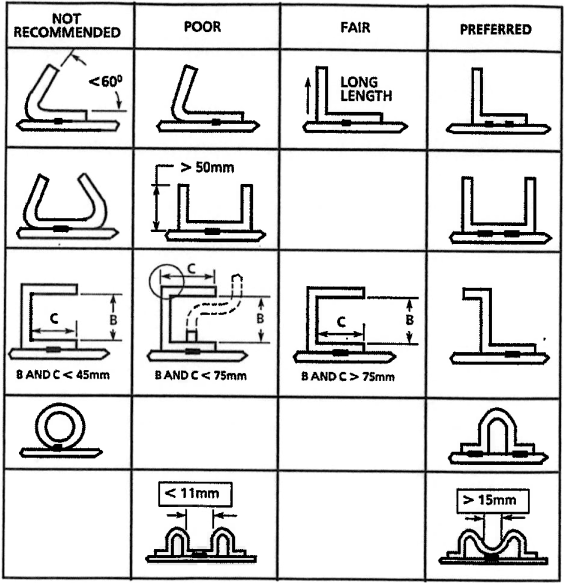

Preferred Spot Welding Design Application
The surrounding metal structure should be designed to provide sufficient clearance for the weld gun/electrode, including space for machine components such as throat depths between 250 and 750 mm, as well as operator movement and safety devices like light curtains. Below is a table outlining best practices for preferred metal design.

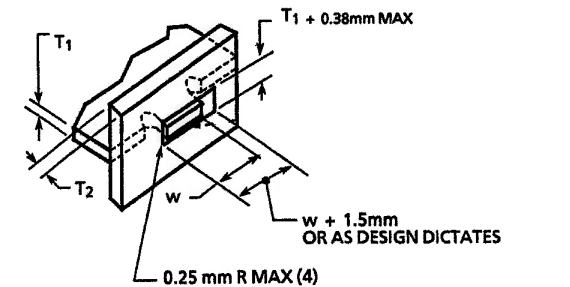

Slot and Tab Welding Guidelines
- Grinding for flush surfaces can weaken the joint strength and also increase the cost. Therefore, unless there is a clearance or aesthetic demand, grinding is not recommended.
- Slot width can be tighter if positioning is critical.

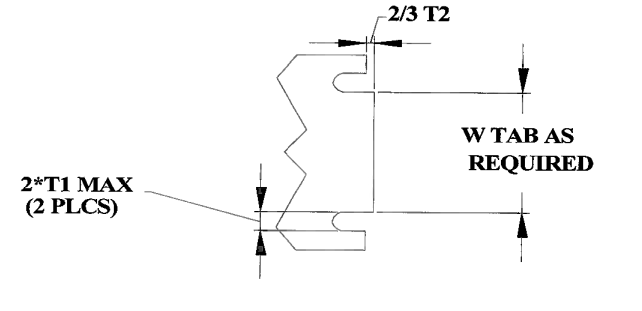

- Preferred tab projection dimension is 2/3 of the mating stock (T2) thickness.
- Typical “W” dimensions, mm:
➔ 4
➔ 12
➔ 15

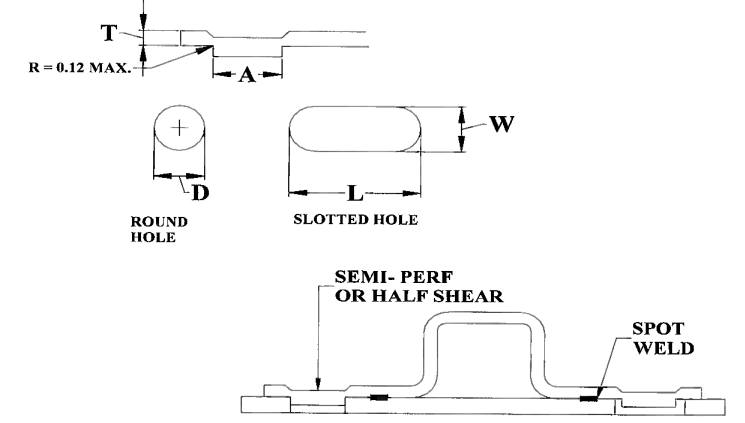

Semi-Perforations (Half-Shears) Guidelines
Semi-perforations are used in sheet metal primarily for two purposes:
- To align sheet metal components so that a fastening process, such as spot welding, can be performed accurately.
- To aid assembly by providing features that help position parts during manufacturing.
The preferred approach when using semi-perforations is the “Hole and Slot” method, where a semi-perf aligns with a mating slot. Although a semi-perf can align with a simple hole, this is not recommended because the tighter tolerances required to match both features increase cost.
Engineering drawings should clearly identify locations where semi-perforations are acceptable.
When semi-perfs are allowed, the recommended drawing note is:
“SEMI-PERFS OR HOLES PERMISSIBLE APPROXIMATELY AS SHOWN.”
Recommended Dimensions for Semi-Perfs and Mating Holes
| Material Thickness (T, mm) | Semi-Perf Diameter A (mm) | Mating Hole Diameter D (mm) | Mating Slot Dimensions W × L (mm) |
|---|---|---|---|
| Over | Thru | +0.1 / –0.1 | +0.1 / –0.0 |
| 0.8 | 1.2 | 3 | 3.1 |
| 1.2 | 2 | 4 | 4.1 |
| 2 | 3 | 5 | 5.1 |
Conclusion
Spot welding is a highly efficient and reliable joining method, but achieving consistent, high-quality welds requires attention to preparation, process control, and equipment condition. By ensuring clean materials, selecting the proper parameters, and maintaining well-conditioned electrodes, manufacturers can significantly improve weld strength, appearance, and repeatability. Regular inspection, testing, and adherence to safety protocols help prevent defects and protect operators. When these best practices are applied consistently, spot welding becomes a robust, cost-effective technique that supports durable and precise fabrication across a wide range of applications. For a broader look at how these manufacturing choices affect a vehicle over time, see our guide to quality vs. durability in cars.
Frequently Asked Questions
What are the main spot welding parameters?
The three core spot welding parameters are current, electrode force (pressure), and weld time. Together they determine the heat generated at the weld interface (Q = I²Rt) and the resulting nugget size and strength.
How do you test a spot weld?
Spot welds are tested using peel tests (pulling the sheets apart to check the nugget), tensile-shear tests (measuring maximum shear load), cross-section inspection (cutting and examining the nugget under magnification), and visual inspection for surface defects.
What is a spot weld cross section used for?
A spot weld cross section is a polished, etched sample cut through the weld nugget that lets engineers directly measure nugget diameter and penetration and check for internal defects like porosity or cracking.
What thickness limitations apply to spot welding?
The ratio between two unequal sheet thicknesses being spot welded should generally not exceed 5 to 1, and attachments to a main part are preferably the same thickness as the main part for the strongest, most consistent joint.
What spacing is recommended between spot welds?
For multi-row welds, the recommended spacing between weld points is approximately five times the weld nugget diameter, which helps prevent overlapping heat-affected zones and ensures consistent weld quality.
