Computational Fluid Dynamics (CFD) Explained

Computational Fluid Dynamics (CFD) has undoubtedly matured into a vital tool in both industrial applications and academic research. Initially, this field—commonly known by its acronym CFD—was primarily associated with high-tech engineering sectors like aeronautics and astronautics. However, it has swiftly evolved into a widely adopted methodology for tackling complex challenges in modern engineering practice. Originating from various disciplines within fluid mechanics and heat transfer, CFD is now extending its reach into other significant and emerging areas, including process, chemical, civil, and environmental engineering.

What Is Computational Fluid Dynamics?

Computational fluid dynamics (CFD) is a specialized area of fluid mechanics that utilizes numerical methods and computational algorithms to investigate and resolve challenges related to fluid flows. By leveraging computers, CFD analyzes the movement of fluids (both liquids and gases) and their interaction with various surfaces under specific boundary conditions. High-speed supercomputers are often necessary to tackle the most complex problems, providing more accurate solutions. Ongoing research continually enhances software capabilities, particularly in simulating intricate scenarios like transonic or turbulent flows.

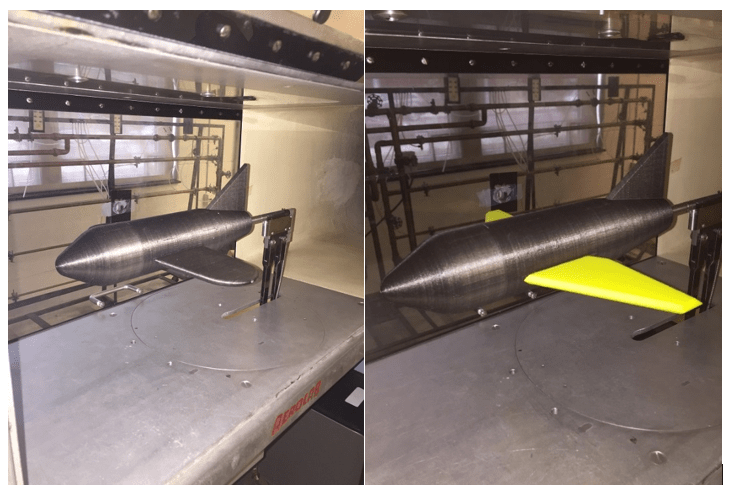

To validate CFD software, researchers typically use experimental setups such as wind tunnels and compare results with analytical or empirical analyses. Additionally, full-scale testing, such as flight tests in the aerospace industry or coast-down tests in the automotive industry, is often conducted for final validation.

CFD finds applications in diverse fields, including aerodynamics, aerospace analysis, hypersonics, weather simulation, environmental engineering, industrial system design, biological engineering, heat transfer, combustion analysis, and visual effects for film and games.

How CFD Works: Pre-Processing, Solving, and Post-Processing

Every CFD analysis, regardless of software or industry, follows roughly the same three-stage workflow:

1. Pre-processing — building the computational model of the fluid domain, defining boundary conditions (inlet velocity, pressure, temperature, etc.), and generating the mesh: dividing the domain into the small cells the solver will calculate over. Mesh quality directly affects both accuracy and how long the simulation takes to run, which is why the meshed model above is such a core part of any CFD workflow.
2. Solving — a numerical method (finite volume, finite element, or finite difference are the most common) discretizes the governing equations — usually the Navier-Stokes equations — and solves them iteratively across every cell in the mesh until the solution converges.

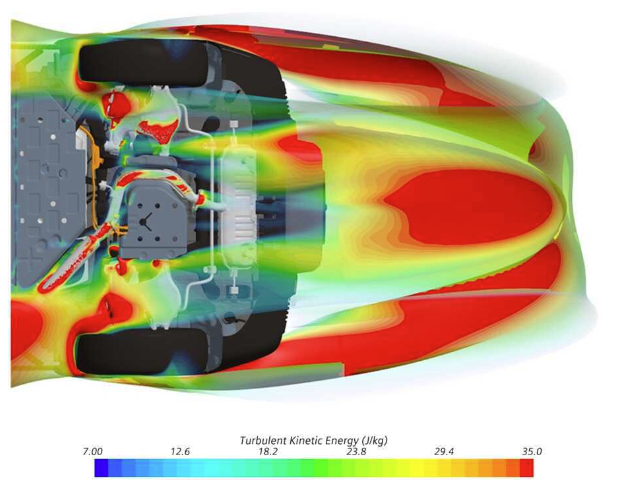

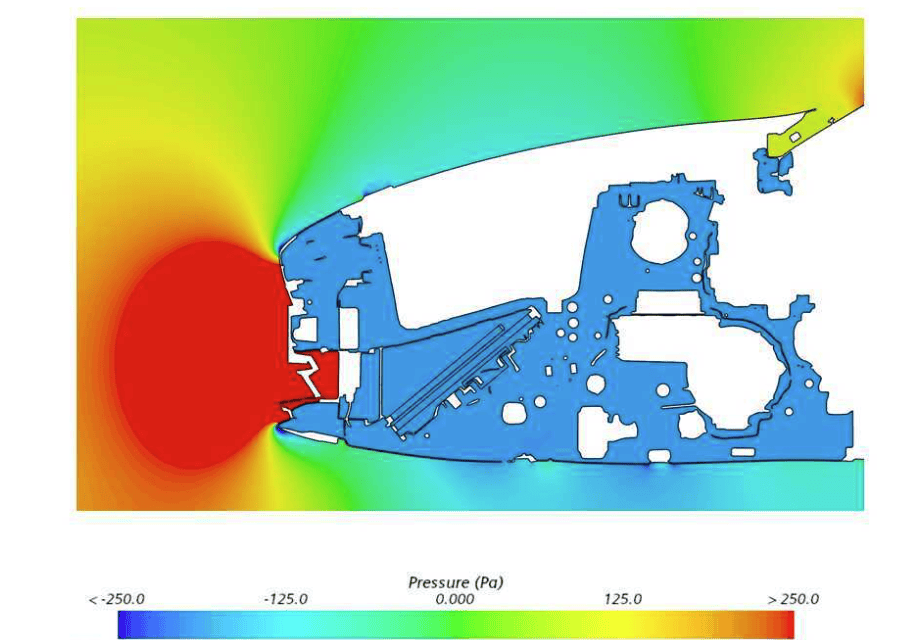

3. Post-processing — visualizing and interpreting the results: pressure and velocity fields, streamlines, forces on a surface, and other outputs, usually as the kind of contour or vector plots shown throughout this article.

Common CFD Software

Most engineers don’t write their own CFD solvers from scratch; they use commercial or open-source software built for it. Some of the most widely used packages include:

• ANSYS Fluent — one of the most widely used general-purpose commercial CFD solvers across automotive, aerospace, and industrial applications.
• ANSYS CFX — another ANSYS solver, historically strong in turbomachinery and rotating equipment.
• Siemens Simcenter STAR-CCM+ — a general-purpose commercial CFD platform known for handling complex, multi-physics simulations in a single environment.
• OpenFOAM — a free, open-source CFD toolkit widely used in both academia and industry, particularly where customization or cost matters.
• Autodesk CFD — a CFD package aimed at design engineers already working inside the Autodesk ecosystem.

Which package a company uses often comes down to existing licensing, the specific physics involved (turbulence, combustion, multiphase flow), and how well it integrates with the CAD and finite element analysis (FEA) tools already in use on a program.

History of Computational Fluid Dynamics

Over the past few decades, various numerical methods have been created to simulate fluid flows for diverse applications. These methods encompass finite-difference, finite-element, finite-volume, and spectral methods, among others. As computational fluid dynamics (CFD) has evolved, its significance and accuracy have grown. Nonetheless, CFD predictions are never entirely precise due to the potential for numerous sources of error. Therefore, it is crucial to exercise caution when interpreting results generated by CFD techniques.

Most CFD problems are based on the Navier–Stokes equations, which govern many fluid flows involving a single phase (either gas or liquid). These equations can be simplified by excluding terms related to viscosity, resulting in the Euler equations. Further simplification, by excluding terms related to vorticity, leads to the full potential equations. For small disturbances in subsonic and supersonic flows (excluding transonic or hypersonic), these equations can be linearized to obtain the linearized potential equations.

Conservation Equations Applied to Computational Fluid Dynamics

Computational fluid dynamics is a science that utilizes digital computers to provide quantitative forecasts of fluid flow behaviors. These forecasts are based on the conservation laws that govern fluid motion, including:

• Conservation of mass (mass is neither created nor destroyed)
• Conservation of momentum (Newton’s second law)
• Conservation of energy (first law of thermodynamics)

They are typically made under specified conditions related to flow geometry, fluid properties, and boundary and initial flow field conditions. These forecasts typically involve determining sets of values for flow variables (e.g., velocity, pressure, temperature) at specific locations within the fluid domain and for specific times. They may also include assessments of overall flow characteristics, such as flow rate or hydrodynamic forces acting on objects within the flow.

What Is the Difference Between CAD and CFD?

Computational fluid dynamics is a specialized branch of fluid mechanics that employs numerical analysis to investigate, comprehend, and visually represent fluid flow phenomena in the physical world. CAD, by contrast, involves utilizing computers and software to assist in the creation, alteration, analysis, and enhancement of designs. In practice, the two are complementary: engineers typically build a component’s geometry in CAD first, then bring that geometry into a CFD tool to analyze how fluid moves around or through it.

Examples of CFD in Engineering

CFD shows up across a wide range of industries. A few concrete examples:

• Automotive aerodynamics — simulating airflow around a vehicle to reduce drag and improve fuel economy or EV range (covered in detail below).
• Aerospace wing and airframe design — predicting lift, drag, and airflow separation on an aircraft before it’s ever built.
• HVAC and building airflow — modeling how air moves through a building or data center to design more efficient heating, cooling, and ventilation systems.
• Weather and climate modeling — simulating large-scale atmospheric and ocean fluid behavior for forecasting.
• Biomedical engineering — modeling blood flow through arteries or airflow through the lungs to inform medical device design.
• Film and games — simulating smoke, fire, and water for visual effects.

What Is CFD in the Automotive Industry?

Computational fluid dynamics is increasingly favored as a numerical tool for predicting flow distribution, pressure loss, heat transfer, and internal and external combustion. It has found extensive application in industries such as automotive, aerospace, marine, and even medical fields.

CFD assists automotive engineers in enhancing vehicle performance. By using CFD software, engineers can optimize vehicle design for improved aerodynamic response, reducing aerodynamic losses and improving overall vehicle efficiency. CFD has been used to design cars like the Bugatti Chiron, which has a drag coefficient of only 0.36, making it one of the most aerodynamic cars on the market.

Benefits of Computational Fluid Dynamics in the Automotive Industry

Automotive companies are relying more and more on CFD to help improve a car’s aerodynamics. The biggest advantage of a computer model over real-life testing is cost and speed. Automotive companies usually only have one wind tunnel, which every program has to share. As a result, vehicle programs sometimes need to wait days or weeks before being able to get tested.

Advantages of Using Computational Fluid Dynamics Models

Computational fluid dynamics models can be produced inexpensively and quickly, without requiring an extraordinary amount of training, although interpreting results often necessitates experience. Despite the rising prices of many commodities, computing costs are decreasing. According to Moore’s Law, which is based on observations over the last 40 years, computational power is expected to double every two years.

Full-field CFD generates detailed and comprehensive information on all relevant variables throughout the domain of interest, which can be easily accessed. It allows for easy variation of input parameters over wide ranges, facilitating design optimization, a task often impossible or prohibitively expensive in experimental studies. CFD can simulate flows directly under practical conditions, unlike experiments that may require small- or large-scale models, or analytical theories that may only be valid for specific limiting cases.

Additionally, CFD provides the flexibility to deactivate certain terms in the governing equations, allowing researchers to focus on essential parameters and eliminate irrelevant features, a level of parametric control typically unattainable in experiments. Furthermore, CFD enables the study of events such as conflagrations, explosions, or nuclear power plant failures, with the aim of understanding and preventing such occurrences.

Common Sources of Error in Computational Fluid Dynamics Models

Discretization error occurs in all numerical methods when a continuous system is approximated by a discrete one. This error arises from using a finite number of grid points in space or instants of time to represent the flow field, and its magnitude can vary between different numerical schemes. Even with the same method, the discretization error can differ based on the distribution of grid points used in a simulation. Proper selection of a numerical method and grid is essential to control discretization error.

Input data error stems from uncertainties in the precise knowledge of flow geometry and fluid properties. Initial and boundary condition error arises when these conditions are not known exactly and must be approximated for numerical calculations. For example, flow properties at the inflow and outflow boundaries of the computational domain may be approximated.

Modeling error occurs in more complex flows where physical phenomena are not fully captured by existing scientific theories. Models used to simulate these phenomena, such as turbulence modeling or multiphase flow modeling, contain inherent inaccuracies.

Frequently Asked Questions

What is computational fluid dynamics (CFD)?

Computational fluid dynamics (CFD) is a branch of fluid mechanics that uses numerical methods and computer simulation to analyze and predict how liquids and gases flow, including how they interact with surfaces like a car body or an aircraft wing.

What software is used for CFD?

Common CFD software includes ANSYS Fluent, ANSYS CFX, Siemens Simcenter STAR-CCM+, the open-source OpenFOAM toolkit, and Autodesk CFD, among others. Which one a company uses depends on the physics involved and existing licensing and CAD integration.

What is the difference between CFD and FEA?

CFD simulates how fluids (liquids and gases) flow and behave, while finite element analysis (FEA) simulates how solid structures respond to loads, such as stress, deflection, or vibration. Both are CAE (computer-aided engineering) tools, and it’s common for a single component to be analyzed with both.

What are the three main steps of a CFD analysis?

Pre-processing (building the model, defining boundary conditions, and generating the mesh), solving (numerically solving the governing flow equations across the mesh), and post-processing (visualizing and interpreting the results).

Why do engineers use CFD instead of only physical testing?

CFD is generally faster and cheaper than building physical prototypes or booking limited wind-tunnel time, and it lets engineers see the full flow field everywhere at once rather than just where a physical sensor is placed. Physical testing is still used to validate CFD results, not replace them.

Conclusion

In conclusion, computational fluid dynamics stands as a powerful tool revolutionizing the study and application of fluid dynamics. With its ability to simulate complex fluid flows and provide detailed insights into a wide array of phenomena, CFD has become indispensable in numerous industries, from aerospace and automotive to environmental engineering and biomedical research. Its cost-effectiveness, speed, and ability to handle both ideal and realistic conditions make it a cornerstone of modern engineering and scientific research. As computing power continues to grow and algorithms become more sophisticated, the future of CFD promises even greater advancements and innovations, shaping the way we understand and manipulate fluid flows for years to come.
