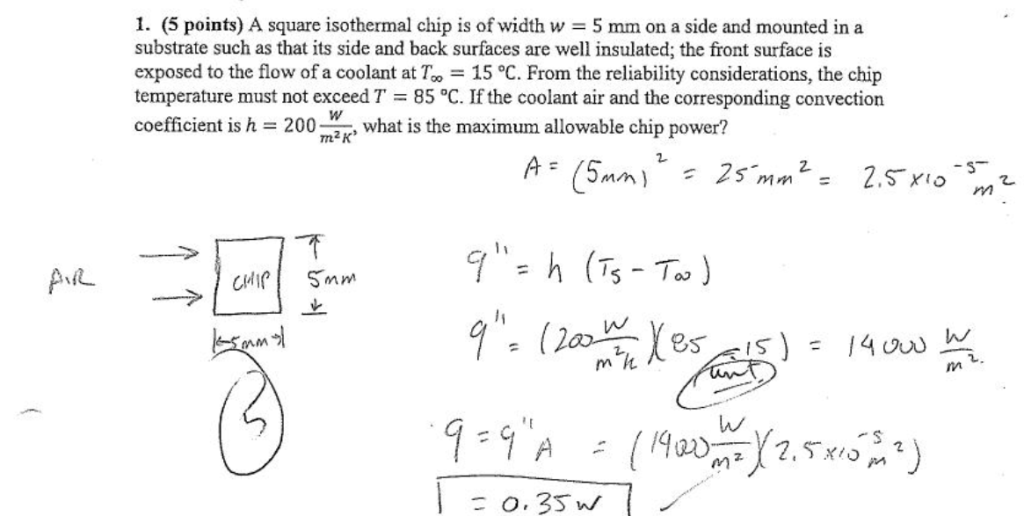

A square isothermal chip is of width w = 5 mm on a side and is mounted in a substrate such that its side and back surfaces are well insulated, while the front surface is exposed to the flow of a coolant at T infinity = I5 degree C. From reliability considerations, the chip temperature must not exceed T = 85 degrees C.
