Determine the resultant internal torque acting on the cross sections through points C and D. The support bearings at A and B allow free turning of the shaft. Sample problems and notes are based on the following text book: Mechanics of Materials 8th Edition ISBN-13: 978-0136022305 ISBN-10: 0136022308 Edition: 7 Author: Russell C. Hibbeler Published Date: 2010
Objective The object of the experiment is to determine the material of an unknown specimen based on the material young’s modulus(E). Young’s modulus is the ratio of the stress to strain in the plastic region of the stress-strain diagram. This mechanical property is material specific. The data which was gathered during this experiment is as…

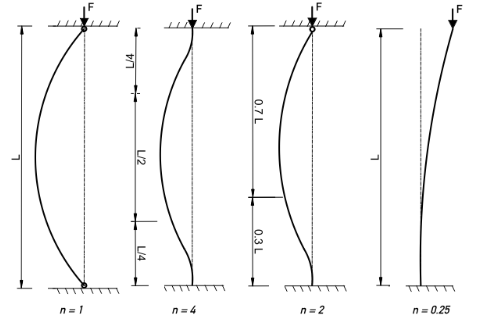

Buckling is a physical occurrence observed in slender structures, such as columns, beams, rods or panel; when it undergoes bending due to applied loads, leading to eventual buckling. This phenomenon can result in the complete failure of the structure. Buckling occurs when the applied load surpasses the structure’s buckling load, which represents the maximum load…
What is the importance of beams? The primary function of beams, regardless of the application, is to act as structural elements that transfer loads. In the civil engineering field, beams refer to horizontal elements which symmetrical sections, such as an i-beam. For example, in a building, beams support the weight of a building’s floors above, ceilings,…
Objective To determine the normal stresses in the pressure vessel, and also to observe and material properties of the pressure vessel used. Finally, compare the calculated and measured stresses on the surface of the cylindrical pressure vessel subject to torque while pressurized. Known & Assumptions Materials: The materials required: Technovate Stress Analysis System Model 9800…
What is an example of torsion force? An example of a torsional force would be anytime a force acting on an object results in a twisted or rotating motion. This twisting movement happens when an applied torque or force encounters an opposing force which generates shear strain. This opposing force could be a result of…

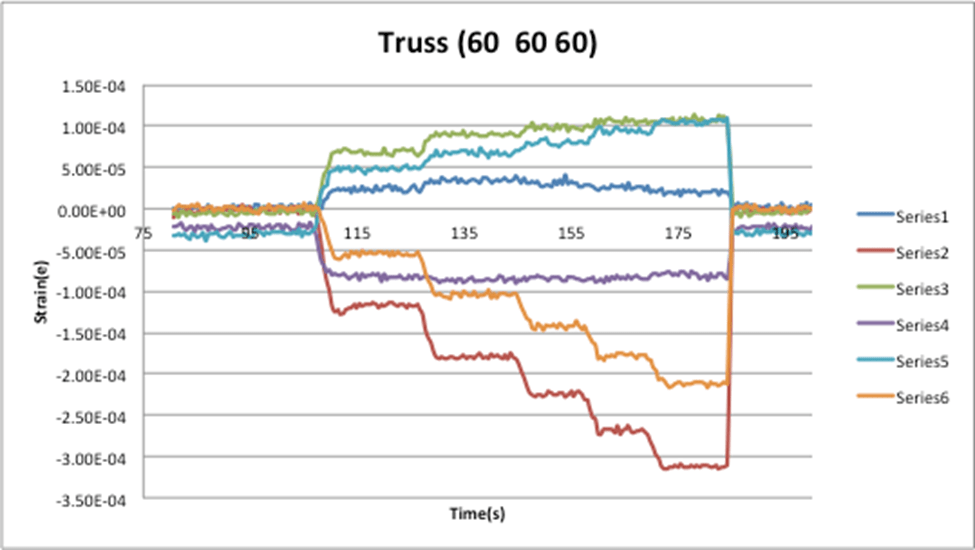

Objective To find and familiarize the stresses in the truss due to an externally applied load, and to see how geometry affects to stresses in the truss. Finally, the last goal of this experiment was to become familiar with strain gauge measurements. Known & Assumptions: Materials: The materials required: The triangular trusses Tinius Olsen Testing…
